Hardcode

Unlike previous binaries, we won't do any disassembly using gdb. Rather, we will use this challenge to demonstrate Ghidra instead. This does not replace using gdb for dynamic analysis but is a good tool for static analysis.

We first use checksec to see what security features are enabled:

$ checksec ./chall
[*] '/ironforge/chall'
    Arch:       amd64-64-little
    RELRO:      Partial RELRO
    Stack:      No canary found
    NX:         NX enabled
    PIE:        PIE enabled
    Stripped:   No

This binary is compiled with all protections enabled. We can't stack smash, we can't overwrite the GOT table, and we can't use absolute addressing. What can we do? Not much.

The most common solution to dealing with fully protected binaries is to use the binary as expected and craft input that reaches an unexpected state. Ghidra helps us understand the program's control flow.

Static Analysis

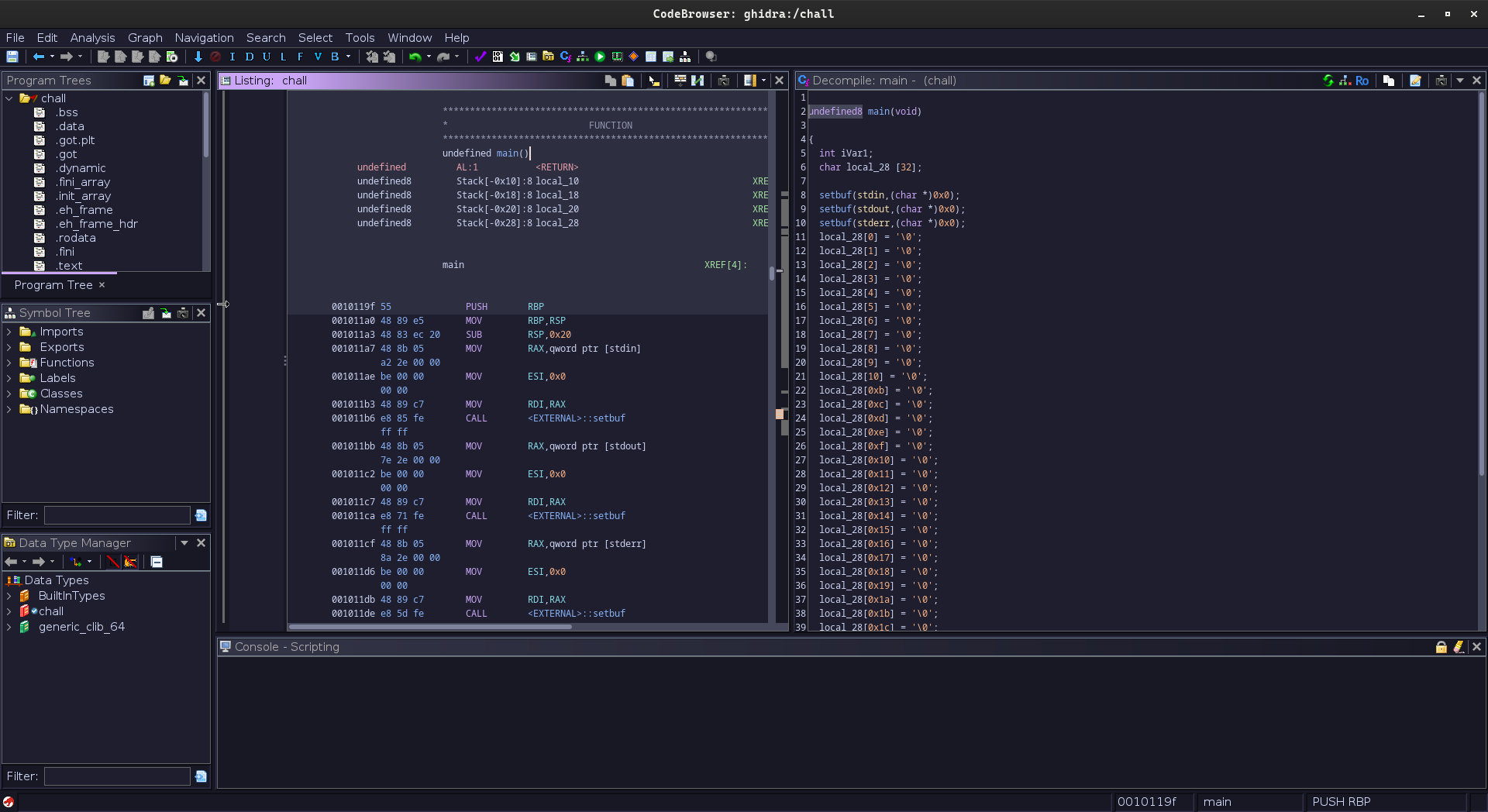

We can use Ghidra to disassemble the binary. If we open the binary in Ghidra, we see the following:

When looking at Ghidra, we notice a few things:

• Ghidra resolves all the function arguments for us.
• It chooses variables' names based on their location on the stack. This is helpful, but we can rename them to make them more meaningful.
• Ghidra always declares variables at the top of the function and then uses them later.
• Ghidra shows the main() function at first. The Functions folder on the left side lets us access the rest of the function. We can also double-click a function to jump to it.
• As we click on lines of code, Ghidra highlights the corresponding assembly code. This helps us understand what the decompilation is doing.
• Sometimes, Ghidra doesn't understand what a variable's data type is. It will name it undefined plus the number of bytes it thinks the type is.
• Ghidra will not disassemble library functions by default because we did not provide the library file.

Below is the default disassembly of main() provided by Ghidra:

undefined8 main(void)
{
	int iVar1;
	char local_28 [32] = { 0 };

	setbuf(stdin,(char *)0x0);
	setbuf(stdout,(char *)0x0);
	setbuf(stderr,(char *)0x0);

	printf("What is the password?\n> ");
	fgets(local_28,0x20,stdin);
	iVar1 = atoi(local_28);
	if (iVar1 == 0x12345) {
		win();
	}
	else {
		puts("You lose!");
	}
	return 0;
}

Realistically, we don't have much cleaning up to do. This is very similar to how a C program would look. We are offered 40 bytes of input. This input is converted to an integer and compared with 0x12345. If our input matches, it calls win(). Let's check out win():

void win(void)
{
  system("cat flag.txt");
  return;
}

This does exactly what we'd expect it to.

Beating the Binary

Unlike the binex section, our goal isn't to exploit the binary. We aim to craft the right input to pass all the checks and reach the win() function. In this case, we know we need to pass 0x12345.

If we try to pass 0x12345 as input, we get the following:

$ ./chall
What is the password?
> 0x12345
You lose!

Why doesn't this work? atoi() converts from a string to an integer. This function does not understand hex. Instead, we can pass the integer equivalent of 0x12345:

$ ./chall
What is the password?
> 74565
IFC{PL4C3H0LD3R_FL4G_H3R3!}

This gives us the flag! we can also write this script using pwntools:

from pwn import *

proc = process("./chall")

key = 0x12345

proc.sendline(str(key).encode())
proc.interactive()

If we print our payload (i.e., print(str(key).encode())), we'd see our payload is b'74565'.
