Visual Panels

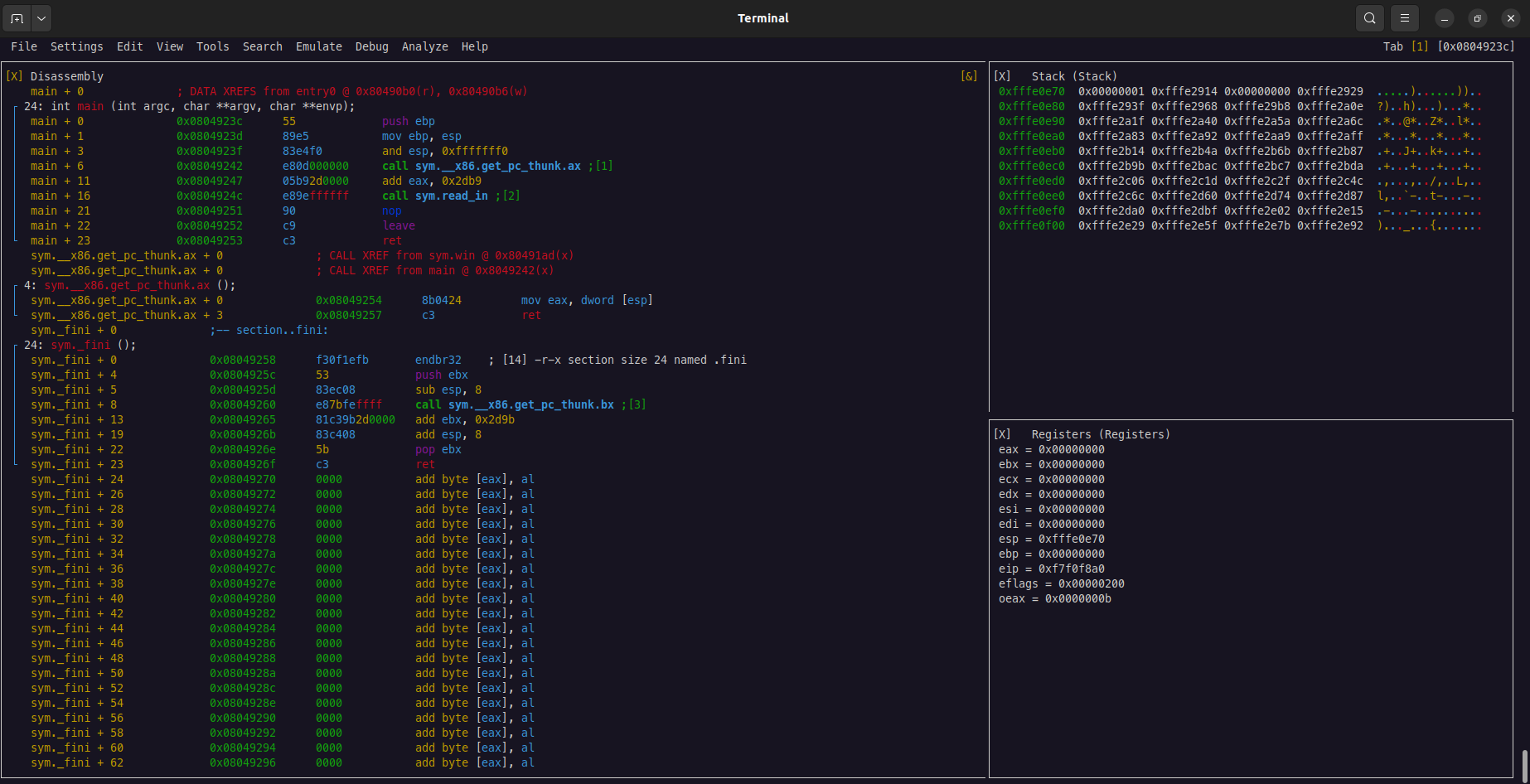

Visual Panels is probably the most helpful feature in Visual Mode. This mode allows you to view multiple panels simultaneously, which is extremely useful for static and dynamic analysis.

Use the V! command to open Visual Panels Mode or ! anywhere inside Visual Mode to open Visual Panels. Use ! again to exit Visual Panels Mode.

radare2
 [m] File  Settings  Edit  View  Tools  Search  Emulate  Debug  Analyze  Help [t]ab (1) [0x080491ef]┌──────────────────────────────────────────────────────────────────┌───────────────────────────────┐│[X] Disassembly                                               [&] │ =  Stack                  [&] ││             ;-- eip:                                             │ 0xff96746c 0xf7d5ecc3  .... @ ││ ┌ 95: int main (char **argv);                                    │ 0xff967470 0x00000001  .... 1 ││ │ `- args(sp[0x4..0x4]) vars(2:sp[0xc..0x30])                    │ 0xff967474 0xff967524  $u.. [s││ │           0x080491ef ●    8d4c2404       lea ecx, [argv]       │ 0xff967478 0xff96752c  ,u.. [s││ │           0x080491f3      83e4f0         and esp, 0xfffffff0   │ 0xff96747c 0xff967490  .t.. [s││ │           0x080491f6      ff71fc         push dword [ecx - 4]  │ 0xff967480 0xf7f6be14  .... eb││ │           0x080491f9      55             push ebp              │ 0xff967484 0x080490ad  .... /h││ │           0x080491fa      89e5           mov ebp, esp          │ 0xff967488 0x00000001  .... 1 ││ │           0x080491fc      51             push ecx              │ 0xff96748c 0xff967524  $u.. [s││ │           0x080491fd      83ec24         sub esp, 0x24         │ 0xff967490 0xf7f6be14  .... @ ││ │           0x08049200      83ec0c         sub esp, 0xc          │ 0xff967494 0x0804bf04  .... /h││ │           0x08049203      6823a00408     push str.Good_luck_win│ 0xff967498 0xf7fbfb60  `... /u││ │           0x08049208      e863feffff     call sym.imp.puts     │ 0xff96749c ..[ null bytes ].. ││ │           0x0804920d      83c410         add esp, 0x10         ┌───────────────────────────────┐│ │           0x08049210      83ec0c         sub esp, 0xc          │ =  Registers              [&] ││ │           0x08049213      683ba00408     push 0x804a03b        │ eax = 0x080490ad              ││ │           0x08049218      e833feffff     call sym.imp.printf   │ ebx = 0xf7f6be14              ││ │           0x0804921d      83c410         add esp, 0x10         │ ecx = 0x7f862677              ││ │           0x08049220      a120c00408     mov eax, dword [obj.st│ edx = 0xff967490              ││ │                                                                │ esi = 0x0804bf04              ││ │           0x08049225      83ec04         sub esp, 4            │ edi = 0xf7fbfb60              ││ │           0x08049228      50             push eax              │ esp = 0xff96746c              ││ │           0x08049229      6a20           push 0x20             │ ebp = 0x00000000              ││ │           0x0804922b      8d45d8         lea eax, [var_28h]    │ eip = 0x080491ef              ││ │           0x0804922e      50             push eax              │ eflags = 0x00000246           ││ │           0x0804922f      e82cfeffff     call sym.imp.fgets    │ oeax = 0xffffffff             ││ │           0x08049234      83c410         add esp, 0x10         │                               ││ │           0x08049237      83ec0c         sub esp, 0xc          │                               │└──────────────────────────────────────────────────────────────────└───────────────────────────────┘

Adding new Panels

Visual Panels is interactable with both the mouse and keyboard. The View tab shows the available panels. Clicking one of the panels will split the current panel vertically to add the new panel.

To manually split the panel, use the following shortcuts:

  • | - Split the current panel vertically.
  • - - Split the current panel horizontally.
  • X - Close the current panel.

To navigate between panels, use the following shortcuts:

  • ↑ ↓ ← →\uparrow\,\downarrow\,\leftarrow\,\rightarrow↑↓←→ - Navigate the current panel.
  • Tab - Move to the next panel.
  • Shift + Tab - Move to the previous panel.
  • p - Move the current panel to the next panel.
  • P - Move the current panel to the previous panel.
  • Enter - Enters Zoom mode, which hides the other panels.

Saving and Loading Layouts

You can save your custom layout by using the Save Layout option from the File menu or by running:

radare2
> v= test

test represents the name you want to give your layout.

To open a saved layout, pass the name of the parameter to v:

radare2
> v test

More information can be found via v?.
